Schüco Window System AWS 50.NI
Technicial Specifications
- Max. view width
- 84mm
- Max. glass/panel thickness
- 42mm
- Max. wingspan
- 1700mm
- Max. wing height
- 2500mm
- Sound insulation index RwP max.
- 43dB(A)

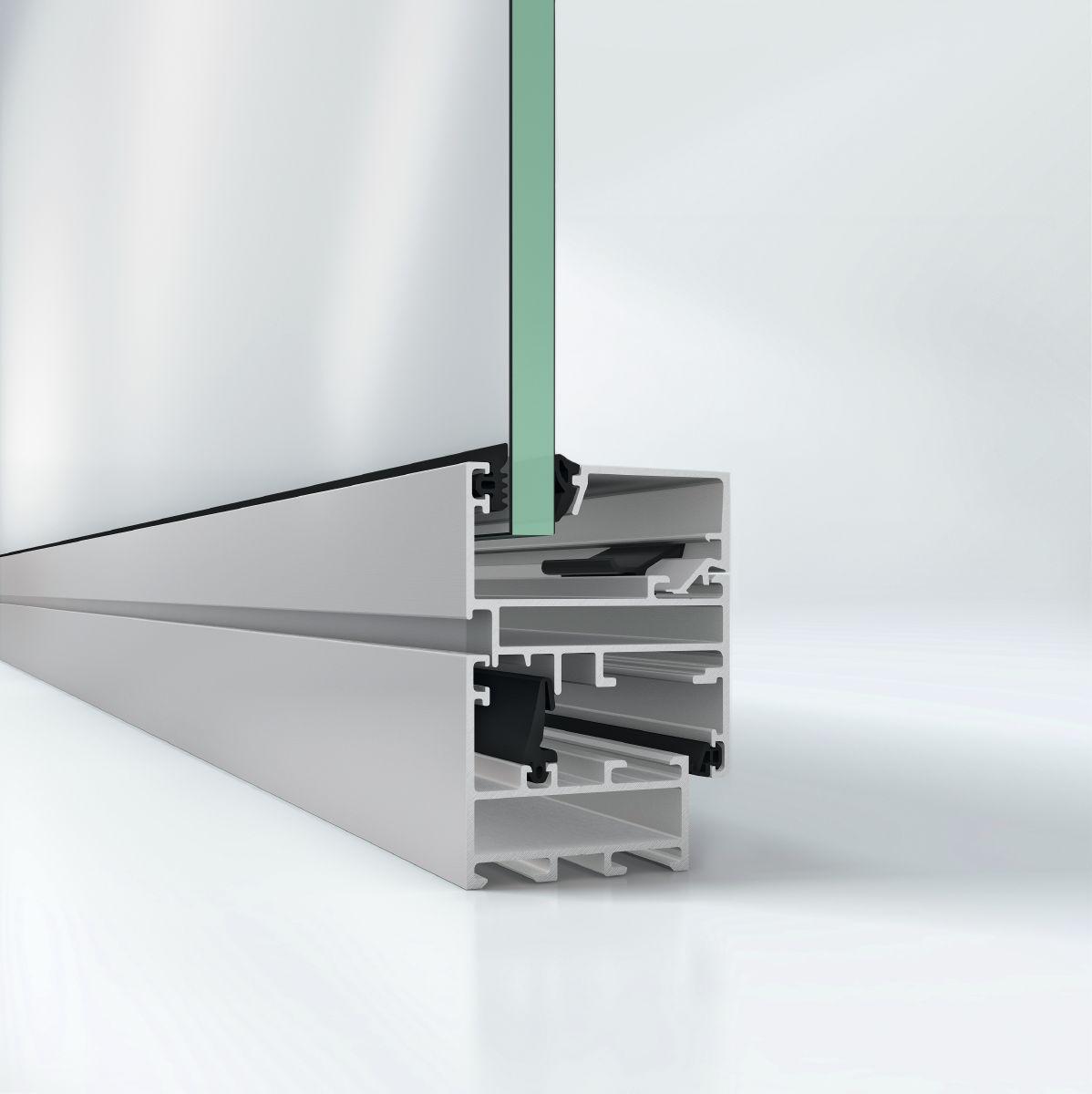

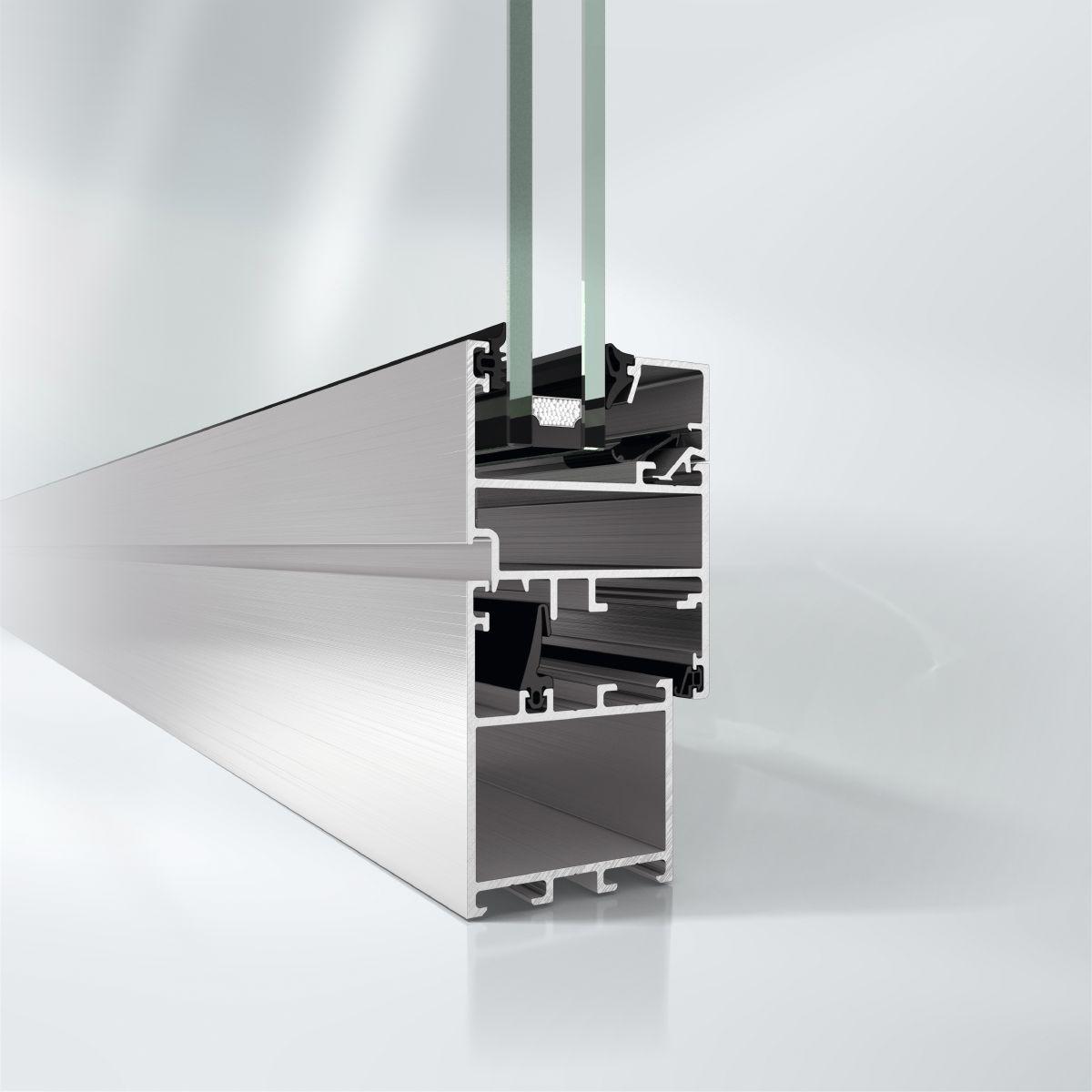

Designed for a construction depth of 50 mm, Schüco AWS 50.NI (Non Insulated) is a non-insulated aluminum window system that offers a wide range of solutions for interior spaces. Combining aesthetics and functionality, this system successfully combines narrow facade widths with hidden fittings, especially in windows opening to the inside and outside.
High system flexibility, in addition to being compatible with Schüco door systems, enables various usage options such as band windows, individual windows or façade-integrated units.
The window system can be adapted to various opening variants such as single axis, open then swing, overhead skylight or parallel tilting sliding door (PASK). For windows opening outwards, opening types offer top-hung, top-hung, side-hung and innovative front panel solutions.
Schüco AWS 50.NI has a broad portfolio of profiles as part of the Schüco AWS system platform. In addition to corner and vertical profiles, this portfolio offers attractive window solutions with symmetrical and asymmetrical profiles, offering an aesthetic suitable for the specific needs in Bodrum.
