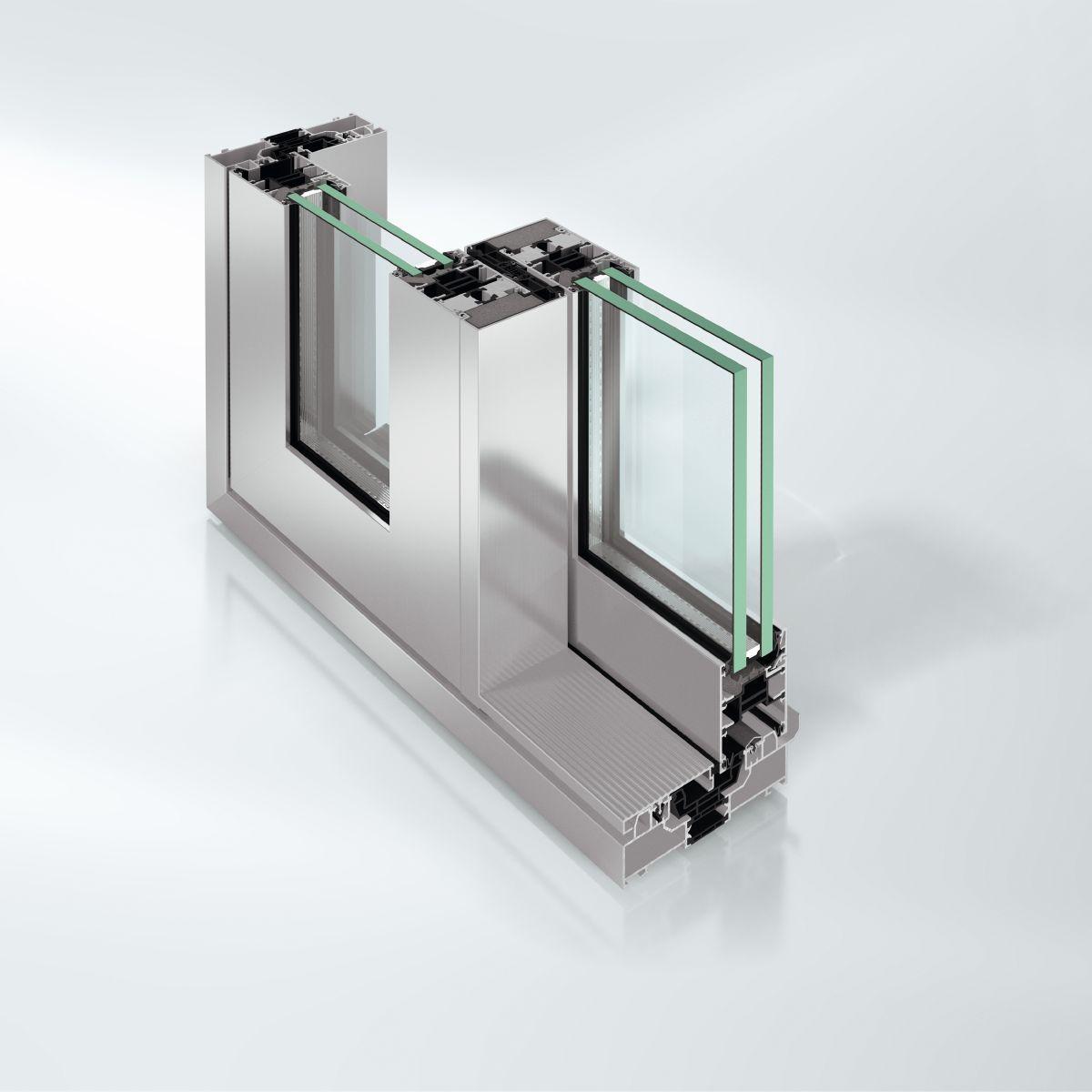

ASE 60- INSULATED HBSB Lift and Slide System
Technicial Specifications
- Min. /max. Wingspan
- 630 mm - 3500 mm
- Min. /max. Wing Height
- 1334 mm - 3500 mm
- Min. /max. Glass Panel Thickness
- 24mm- 40mm
- Sound Insulation Index
- 41dB(A)
- Air Permeability
- Class 4
- Waterproof
- E 900
- Wind Load Resistance
- C5/B5
In line with the unique atmosphere of Bodrum, Schüco's modular and scalable ASE 60 slide and lift systems offer a fascinating option with their excellent thermal insulation values, elegant appearance and numerous solutions in arrangement, design and comfort.
A feature that should be particularly emphasized is the special configuration of the Sliding System in terms of comfort and design. User-supporting safety and comfort technologies such as Schüco SmartStop and Schüco SmartClose offer a use that integrates with the peaceful atmosphere of Bodrum. A thin hooking area ensures a perfect union between indoor and outdoor, and the equal level threshold meets the barrier-free needs in daily life.
In addition, thanks to the closed mechanism components, the profile system maintains its design even in the open state and complies with the aesthetic standards of Bodrum.
Sliding and Lift and Slide Systems are certified for burglar resistance to meet increasing security demands, so you can live peacefully at home in Bodrum.
